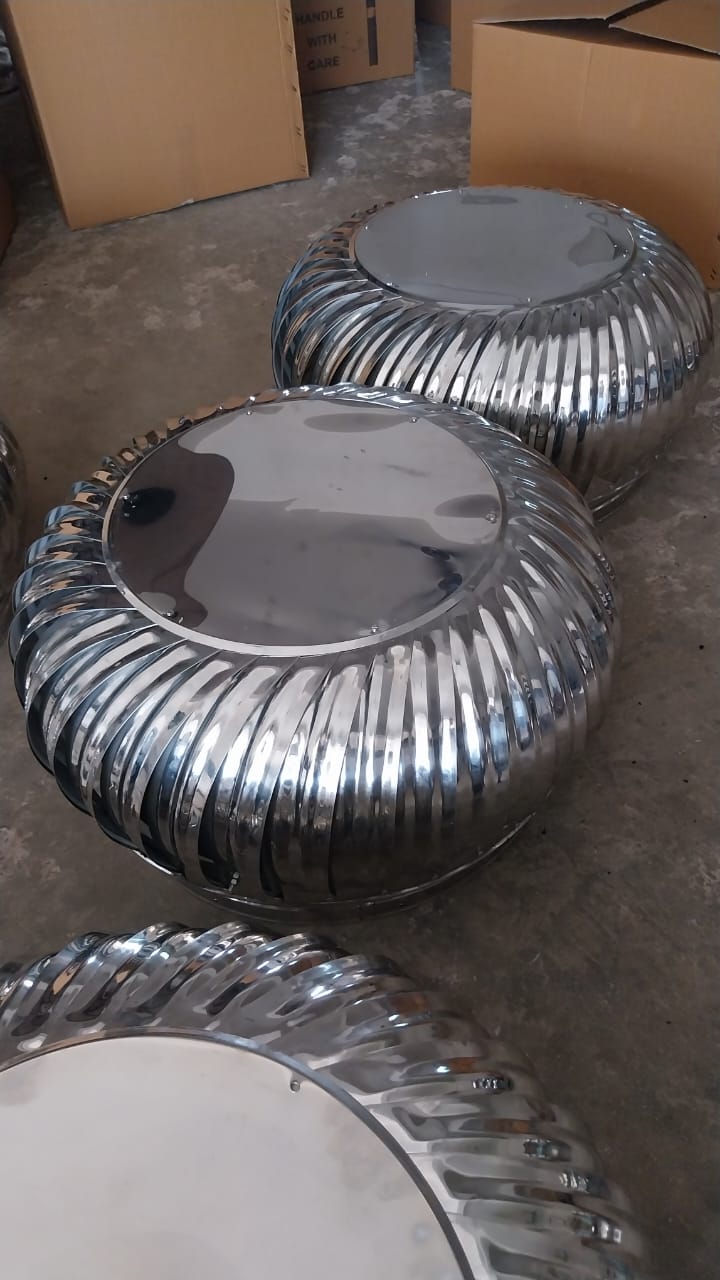

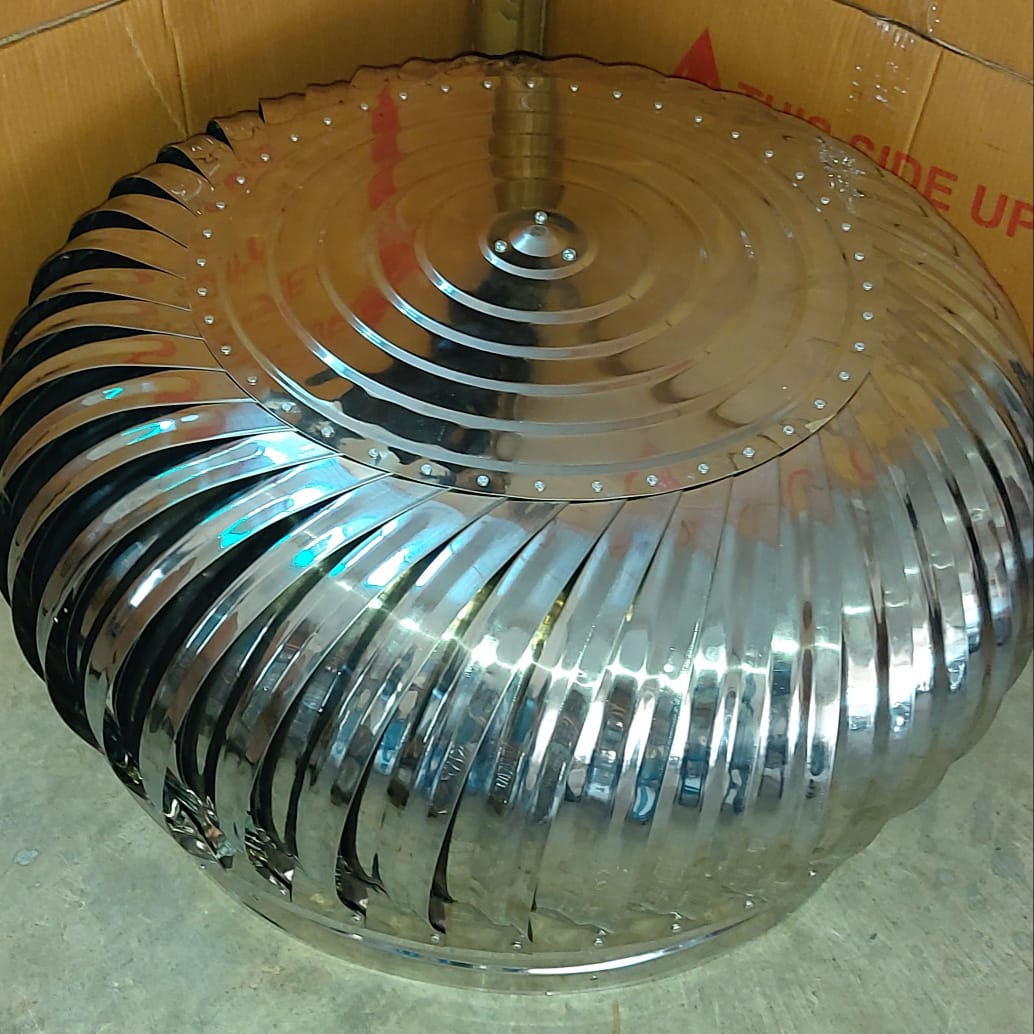

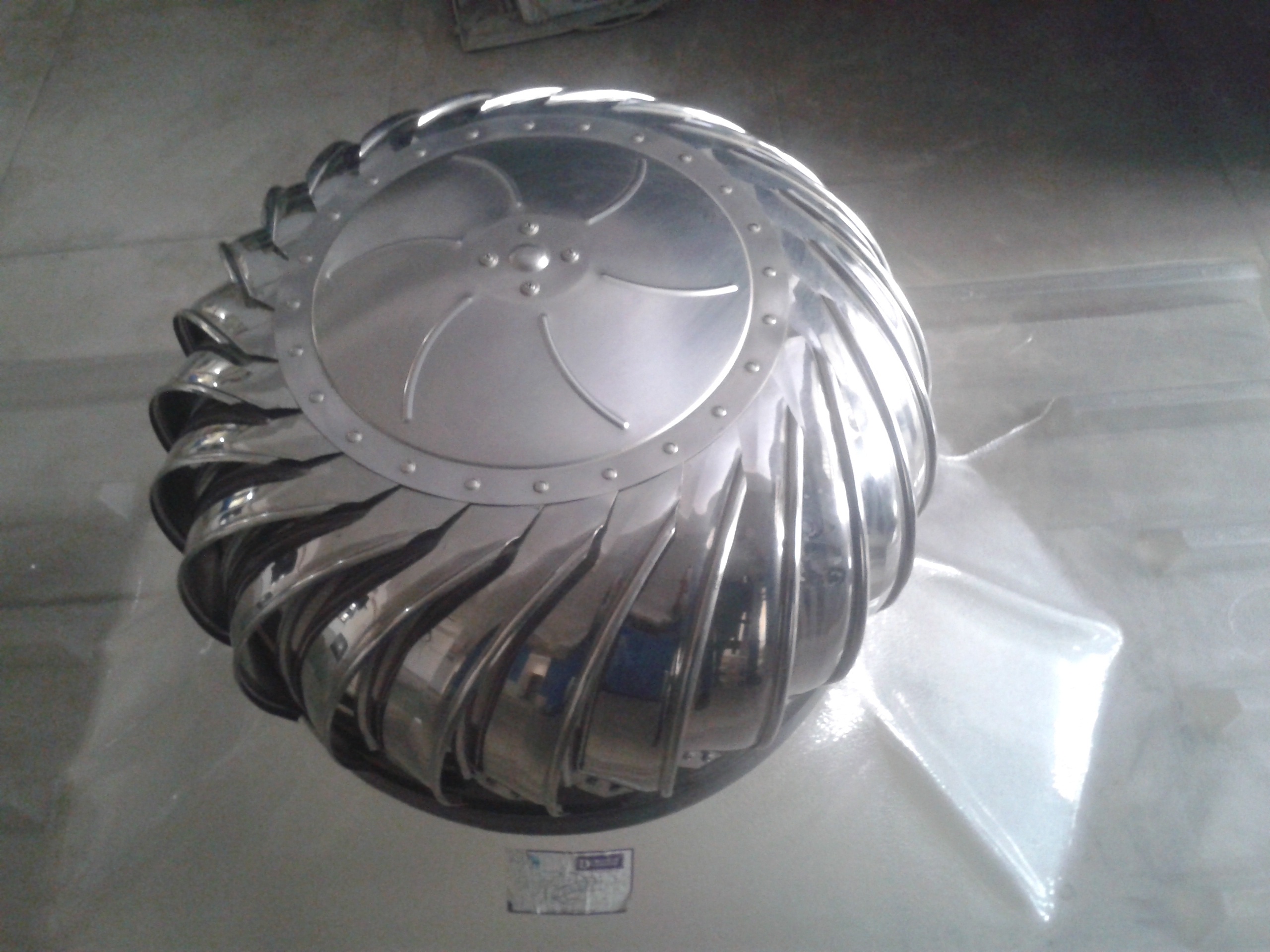

Our premium range of wind-driven roof turbo ventilators offers a zero-operating-cost ventilation solution for industrial sheds, warehouses, factories, and workshops. Operating purely on natural wind energy and the thermal stack effect, these ventilators continuously exhaust suffocating hot air, chemical fumes, and moisture without consuming a single unit of electricity.
| Feature / Parameter | 21-Inch Model | 24-Inch Model |
| Throat / Neck Diameter | 21 inches (530 mm) | 24 inches (600 mm) |
| Material Options | High-Grade Aluminium / SS 304 / SS 202 | High-Grade Aluminium / SS 304 / SS 202 |
| Air Exhaust Capacity | ~1,000 to 1,500 CFM | ~2,000 to 2,700 CFM |
| Volumetric Flow Rate | Up to 2,500 m3/hr | Up to 4,500 m3/hr |
| Recommended Coverage Area | Approx. 200 - 250 sq. ft. | Approx. 350 - 400 sq. ft. |
| Blade Configuration | 36 - 40 Aerodynamic Vanes | 42 Curved Spherical Vanes |
| Bearing Assembly | Double Sealed Precision Bearings | Double Sealed Precision Bearings |
